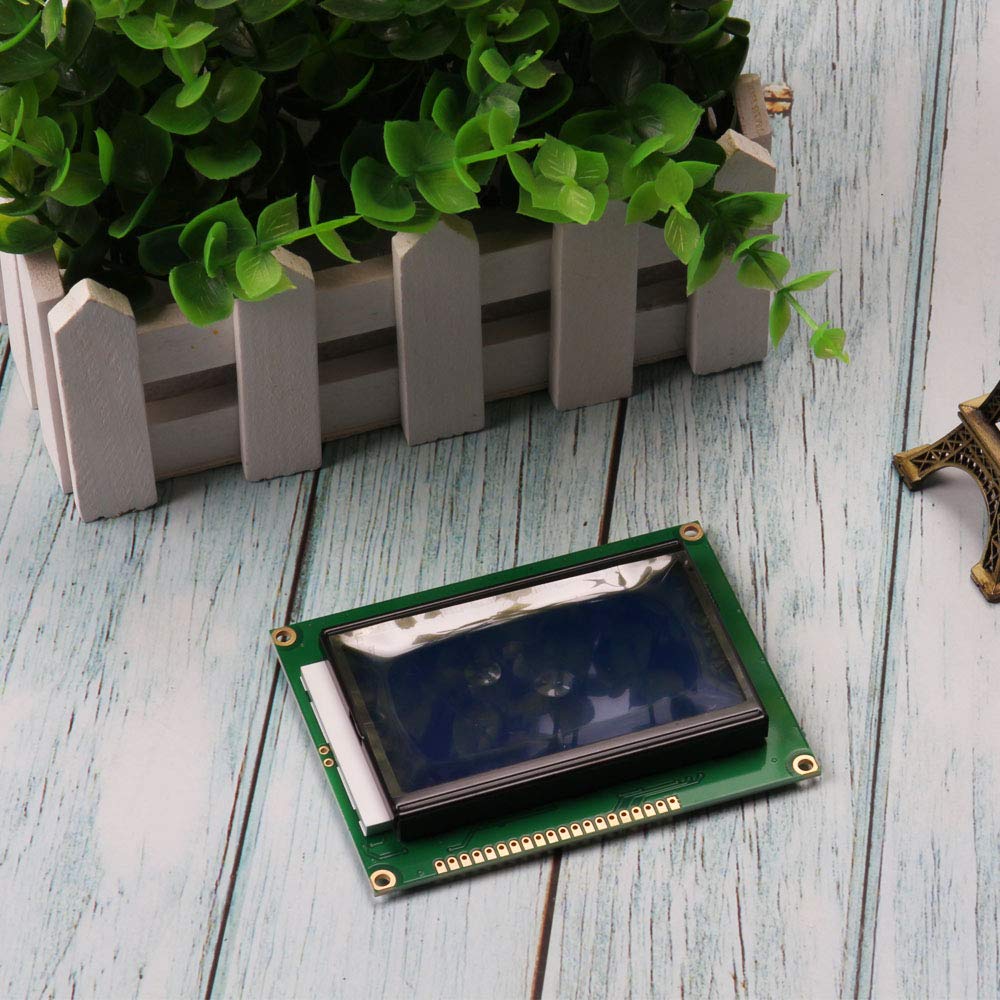

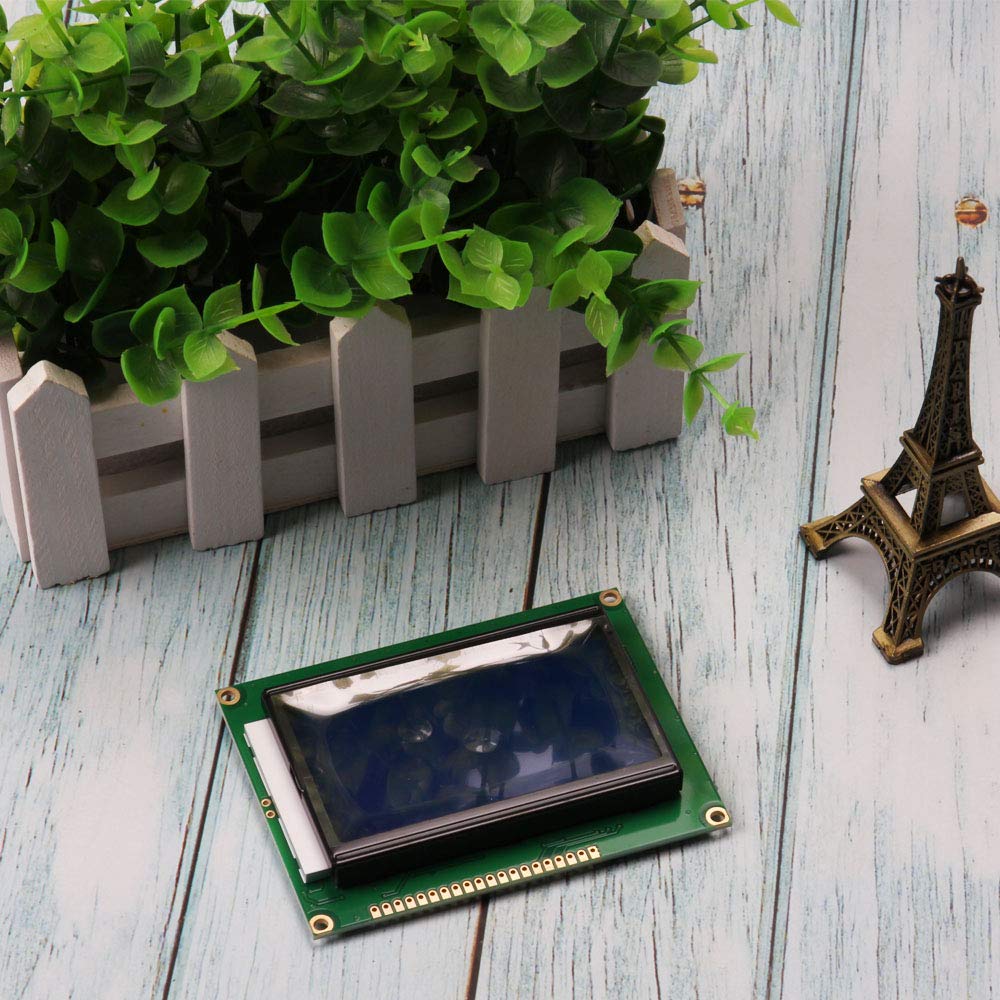

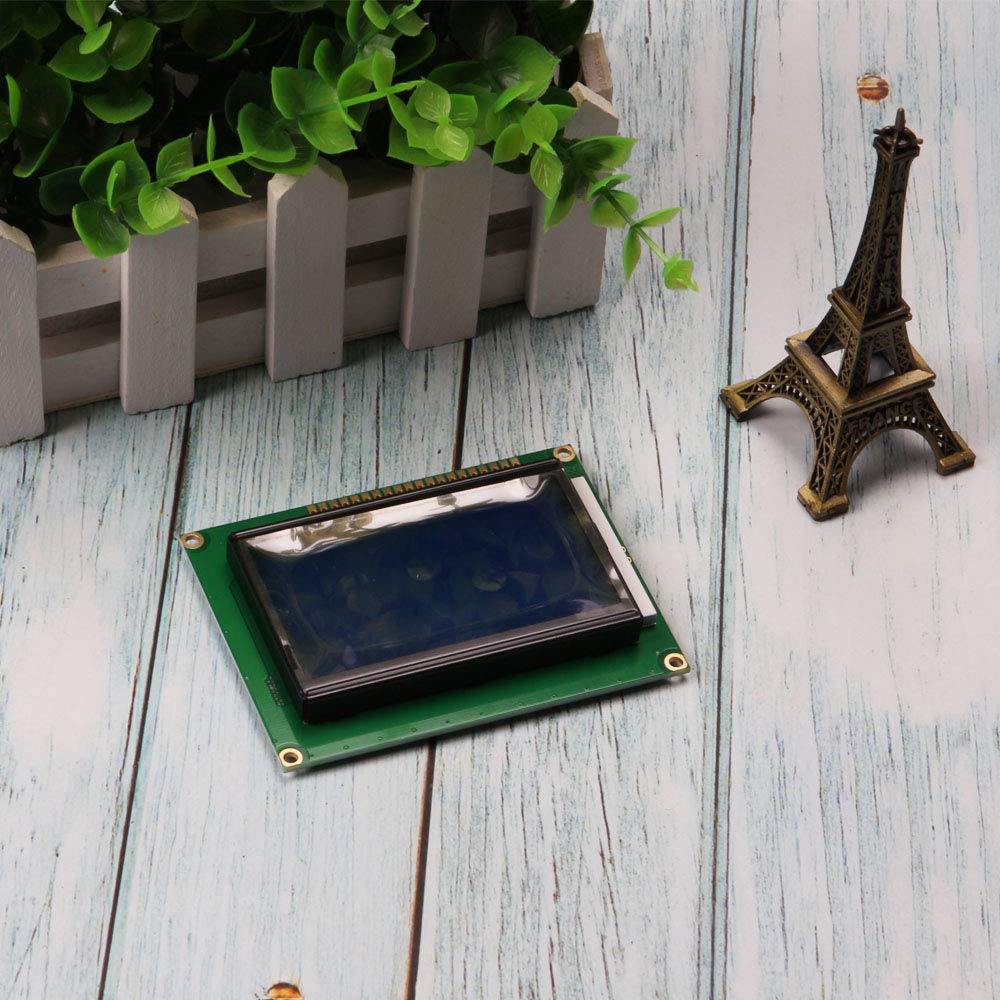

Ximimark 1PCS 5V 12864 LCD Display Module 128x64 Dots Graphic Matrix LCD Blue Backlight
Details
- BrandXimimark
- Graphics Card DescriptionIntegrated
- Graphics CoprocessorIntegrated
- Memory Slots Available1
- Personal computer design typeAll in One
- Screen Size9.3
Description
💡 Illuminate Your Ideas with Ximimark!
- COMPACT DESIGN - Lightweight at just 2.89 ounces for easy integration.
- DIMMABLE BACKLIGHT - Customize brightness to suit any environment.
- COMPREHENSIVE SUPPORT - Includes Arduino library and examples for seamless setup.
- ELEVATE YOUR PROJECTS - Transform your Arduino creations with stunning visuals!

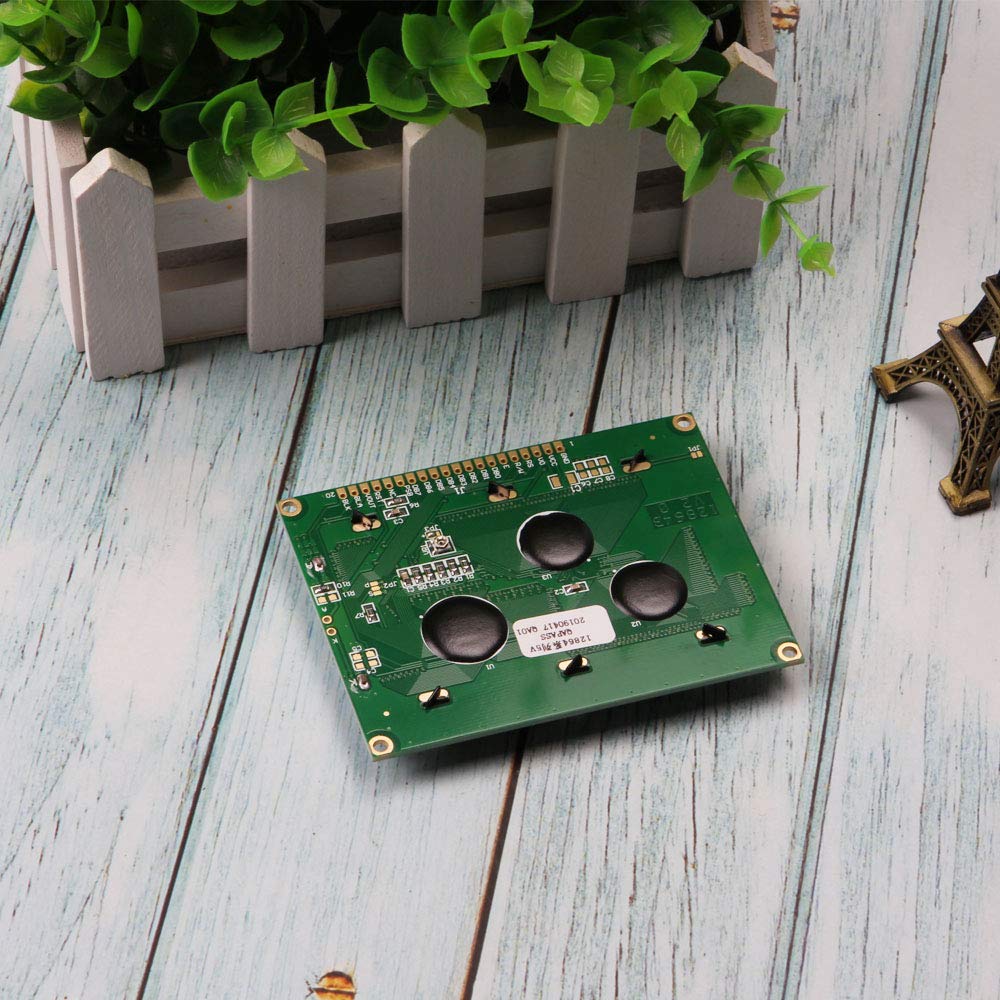

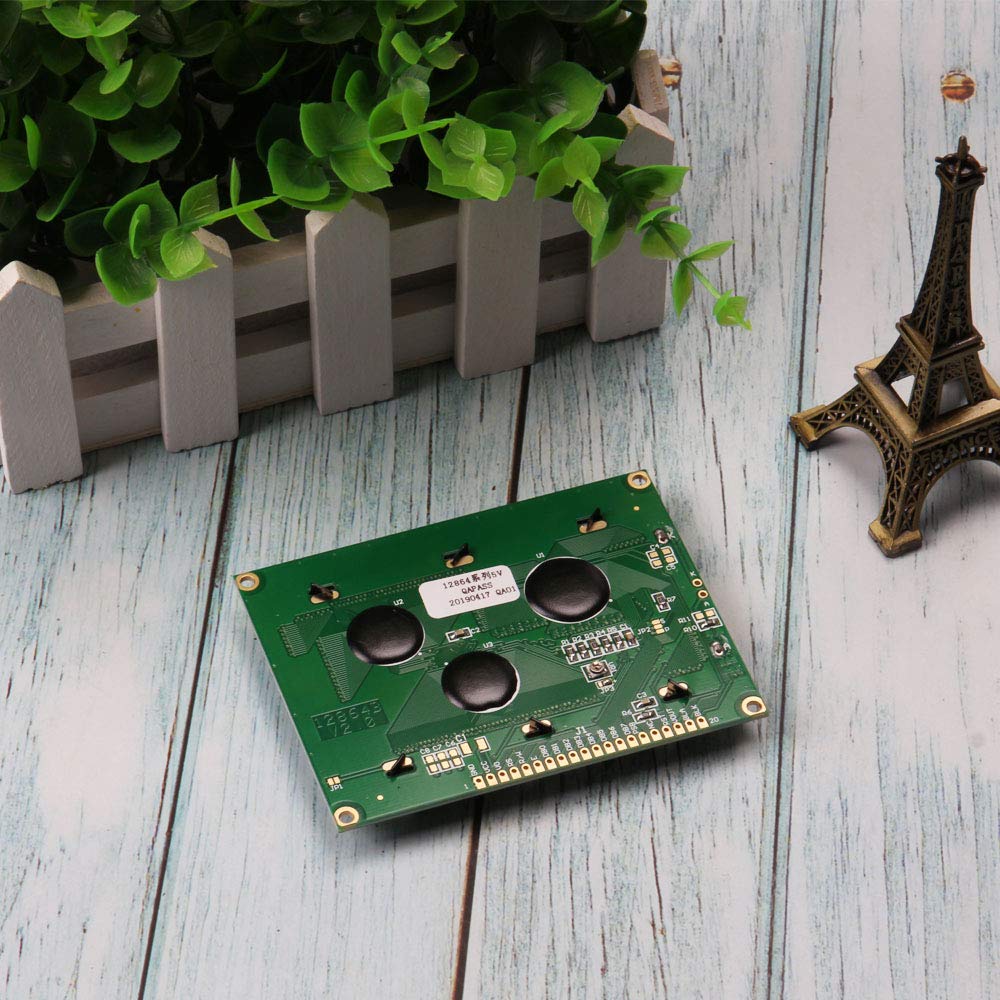

- INTEGRATED POTENTIOMETER - Easily adjust display contrast for optimal viewing.
The Ximimark 1PCS 5V 12864 LCD Display Module features a 128x64 graphic matrix with a vibrant blue backlight, perfect for enhancing your Arduino projects. With an integrated potentiometer for contrast adjustment and a lightweight design, this module is both user-friendly and versatile. Ideal for makers and professionals alike, it comes with comprehensive support to get you started quickly.
Specifications
| Standing screen display size | 9.3 Centimeters |
| Screen Resolution | 128 x 64 |
| Max Screen Resolution | 128 x 64 |
| Hard Drive | HDD |
| Graphics Coprocessor | Integrated Graphics |
| Card Description | Integrated |
| Brand | Ximimark |
| Series | LY299 |
| Item model number | LY299 |
| Item Weight | 2.89 ounces |
| Package Dimensions | 7.2 x 5.08 x 1.3 inches |
| Color | Blue |
| Processor Brand | Ximimark |
| Number of Processors | 1 |
| Computer Memory Type | DDR4 SDRAM |
| Hard Drive Interface | Serial ATA |
Reviews
T**Z
thank you
thank you
N**G
Not as pictured.
I have a V1.5 which does not have the pot on the back to adjust the contrast. additionally for my application I cannot get to the clock input on the chip as it seems to be potted. There are no definitive data sheets available for this specific model that address the contrast adjustment. It's making my project nearly impossible since there are about 500 variations of this type of LCD. I shouldn't need an external controller as the ST7920 should be capable of handling the line change pulse.
J**S
Works as expected.
First off, if you plan on using this display with an Arduino, make sure you have a pin header of at least 20 pins, and that your soldering skills are up to par. The display does not include pin headers.Second of all, I couldn’t get it working on the first try, but I quickly realized that I had wired one of the data lines as “high” instead of “low”. And so after rewiring my circuit and adjusting the contrast (there is a little potentiometer on the back), I got it to work with no issues. I used the U8G2 Arduino library to test the display with, but the display will also work with any other library that supports the ST7920 chipset.I look forward to working more with this awesome little display.
