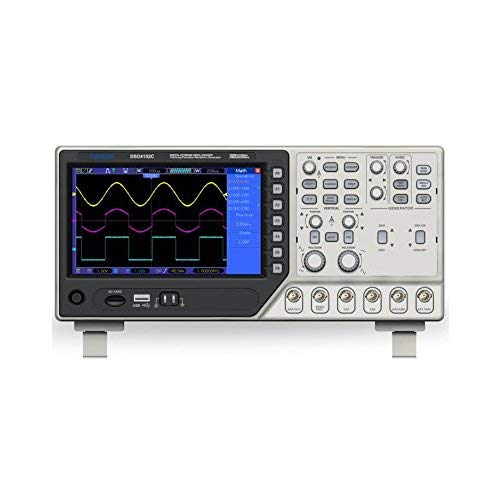

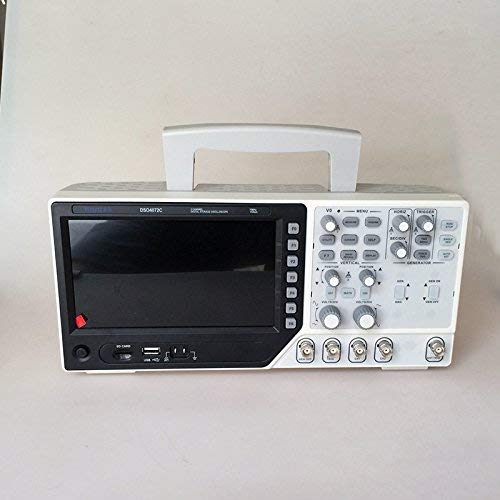

Hantek 2 Channel Digital Oscilloscope 1 Channel Arbitrary/Function Waveform Generator 200MHz 40K 1GS/s DSO4202C
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5Thumbnail 6Thumbnail 7

Hantek 2 Channel Digital Oscilloscope 1 Channel Arbitrary/Function Waveform Generator 200MHz 40K 1GS/s DSO4202C

Product ID: 129728415
Secure Transaction
Frequently Bought Together

Description

  • 30 days return; 2-Years after-sales and maintenance; Lifelong technical support.
  • 2 Channel Digital Oscilloscope + Arbitrary/Function Waveform Generator + Synchronizing Signal + External Trigger,The Keys for osilloscope and waveform generator is seperated for convenient to operate it simultaneously
  • Oscilloscope: 1GSa/s Sample Rate,200MHz Bandwidth, more than 20 kinds of auto measurement functions;
  • Arbitrary/Function Waveform Generator: 25MHz, 12 bits resolution, 200MHz DDS, Arbitrary wave/square wave/sine wave/triangle
  • wave/trapezoidal wave/pulse wave/DC is easy to simulate transducer. Powerful Trigger Function: Edge, Video, Pulse, Slope, Over time, Alternative

DSO4202C: 2 Channel Digital Oscilloscope. 1 Channel Arbitrary/Function Waveform Generator. The Keys for osilloscope and waveform generator is seperated for convenient to operate it simultaneously.  Oscilloscope:200MHz  Bandwidth, 1GSa/s  Sample Rate.25MHz Arbitrary waveform generator, 12 bits resolution,200MHz DDS,7 inch 64K color LCD display, Resolution 800x480. Parameters: 1.Oscilloscope  *Sample Rate:Sampling Rate Range:1GSa/s;Equivalent Sample Rate:25GSa/s 2.Acquisition Modes  *Normal:Normal data only  *Peak Detect:High-frequency and randon glith capture *Average:Wavefom Average, selectable 4,8,16,32,64,128 3.Horizontal *Sample Rate Range:1GS/s  *Waveform Interpolation:(sin x)/x  *Record Length:40K  *SEC/DIV Range:2ns/div to 40s/div 4. Vertical  *Vertical Resolution:8-bit resolution,all channel sampled simultaneously *Bandwidth:200MHz  *Rise Time at BNC(typical):1.8ns 5.Trigger System  *Trigger Types:Edge,Video,Pulse,Slope,Over time, Alternative  *Trigger Source:CH1,CH2,EXT,EXT/5,AC Line  *Trigger Modes:Auto, Normal, Single 6.Signal Source Mode *Waveform Impedance:DC-25MHz  *Sample Rate:200MHzDDS  *Output Waveform:Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC  *Frequency Resolution:0.1%  *Waveform Depth:4KSa  *Frequency Stability:?30ppm
